Insulation Displacement Technology - IDC

Ribbon Cable

Assembly of flat-ribbon cables in the grid:

mm
0,635
1,001,27
2,0
2,5
2,54
3,96
Zoll
0,025''
0,039"0,050''
0,079''
0,098''
0,100''
0,156''
mm
0,635
1,001,27
2,0
2,5
2,54
3,96
Zoll
0,025''
0,039"0,050''
0,079''
0,098''
0,100''
0,156''

Very many different variants possible.

Assembly with among others:

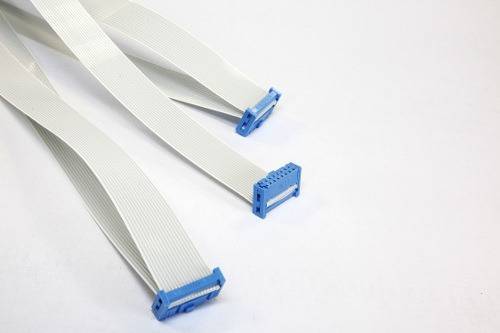

  • IDC Socket Connector DIN41651
  • MAS-CON or MTA - Connectors
  • Micro-Match - Connectors

Flat Foil Cable (FFC)

Termination of laminated foil cables with IDC Socket connectors (DIN 41651). This processing is possible by the use of special IDC Socket Connectors with pipe-contacts.
